We provide high-performance lithium battery solutions designed for reliability, efficiency, and long-lasting power.
We provide high-performance lithium battery solutions designed for reliability, efficiency, and long-lasting power.

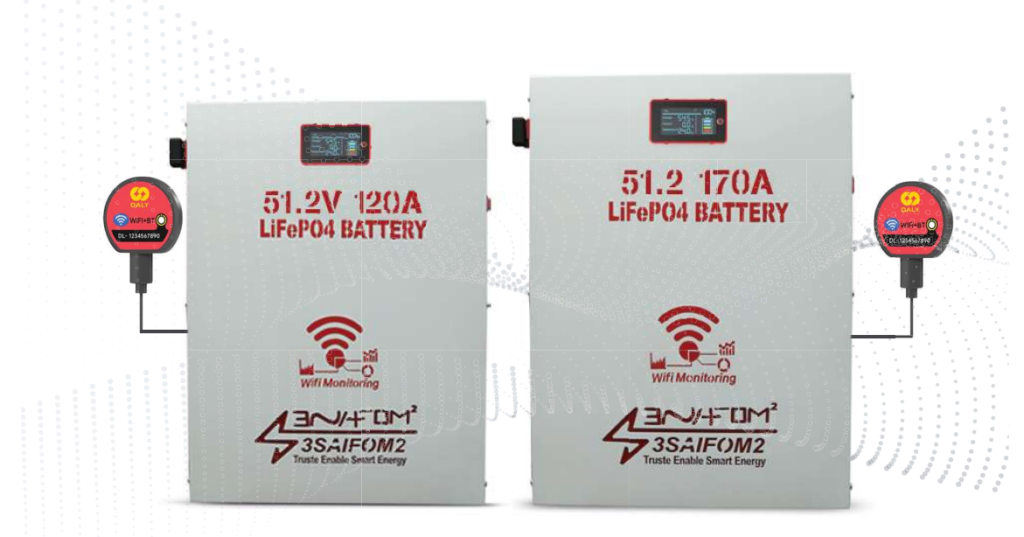

Wall-mount Series is for residential or light commercial use. Its rechargeable power device provides energy storage for the load. Powerwall electrical interface provides a simple connection to Inverters support a maximum 200A discharging current and full working under -30 C. Compact design and flexible configuration lead it to market-leading products. Support 16 units cabinets parallel connection to extend capacity.
| Model Type | SOM-51.2-120Ah | SOM-51.2-240Ah |
|---|---|---|
|
Nominal Voltage |
51.2 V |
51.2 V |
|
Nominal Energy |
6KWH/120Ah |
8KWH/170Ah |
|
Useage Energy |
5.5 Kwh |
7.5 Kwh |
|
Dimension |
24 x 14 x 6 inch |
26x 14 x 9 inch |
|
Weight |
42KG |
56 KG |
|
Charging Current (Standard version) |
150-200 A |
|
|
Discharging Current (Standard ) |
200 A |
|
|
Charging Current (Plus version) |
150 A |
|
|
Discharging Current (Plus version) |
200 A |
|
|
Cycle Life |
6000 Cycles / 80% DOD / 25°C |
|
|
Design Life |
8-10 Years |
|
|
Communication Port |
CAN/485 / WIFI Optional |
|

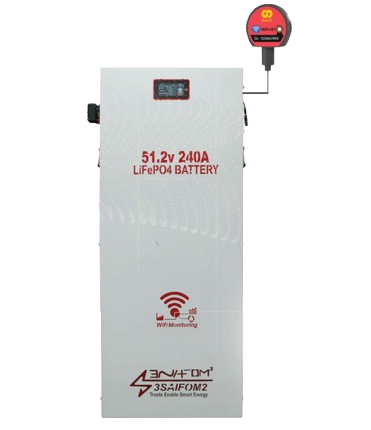

Wall-mount Series is for residential or light commercial use. Its rechargeable power device provides energy storage for the load. Powerwall electrical interface provides a simple connection to Inverters support a maximum 200A discharging current and full working under -30 C. Compact design and flexible configuration lead it to market-leading products. Support 16 units cabinets parallel connection to extend capacity.
| Model Type | SOM - 51.2 - 240Ah | |
|---|---|---|
|
Nominal Voltage |
51.2 V |
|
|
Nominal Energy |
11.5 KWH / 240Ah |
|
|
Useage Energy |
11Kwh |
|
|
Dimension |
42x 14 x 6 inch |
|
|
Weight |
72 KG |
|
|
Charging Current (Standard version) |
150-200 A |
|
|
Discharging Current (Standard ) |
200 A |
|
|
Charging Current (Plus version) |
150 A |
|
|
Discharging Current (Plus version) |
200 A |
|
|
Cycle Life |
6000 Cycles / 80% DOD / 25°C |
|
|
Design Life |
8-10 Years |
|
|
Communication Port |
CAN/485 / WIFI Optional |
|

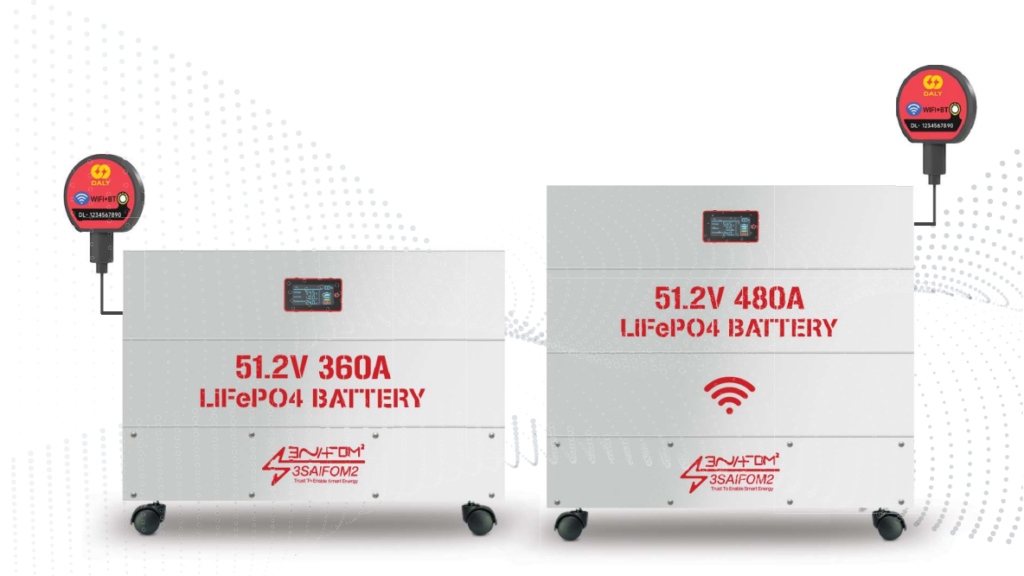

Trolley-mount Series is for residential or light commercial use. Its rechargeable power device provides energy storage for the load. Powerwall electrical interface provides a simple connection to Inverters support a maximum 200A discharging current and full working under -30 C. Compact design and flexible configuration lead it to market-leading products. Support 16 units cabinets parallel connection to extend capacity.
| Model Type | SOM - 51.2 - 360Ah | SOM-51.2-480Ah |
|---|---|---|
|
Nominal Voltage |
51.2 V |
51.2 V |
|
Nominal Energy |
16.5 KWH / 360Ah |
22 KWH / 480Ah |
|
Useage Energy |
16 Kwh |
21.2 Kwh |
|
Dimension |
24 x 25 x 11 inch |
24 x 28 x 13 inch |
|
Weight |
128 KG |
162 KG |
|
Charging Current (Standard version) |
200-250 A |
|
|
Discharging Current (Standard ) |
250 A |
|
|
Charging Current (Plus version) |
200 A |
|
|
Discharging Current (Plus version) |
250 A |
|
|
Cycle Life |
6000 Cycles / 80% DOD / 25°C |
|
|
Design Life |
8-10 Years |
|
|
Communication Port |
CAN/485 / WIFI Optional |
|
Trolley-mount Series is for residential or light commercial use. Its rechargeable power device provides energy storage for the load. Powerwall electrical interface provides a simple connection to Inverters support a maximum 200A discharging current and full working under -30 C. Compact design and flexible configuration lead it to market-leading products. Support 16 units cabinets parallel connection to extend capacity.
| Model Type | SOM - 51.2 - 600Ah | |
|---|---|---|
|
Nominal Voltage |
51.2 V |
|
|
Nominal Energy |
30 KWH / 600Ah |
|
|
Useage Energy |
29.2 Kwh |
|
|
Dimension |
28 x 38 x 13 inch |
|
|
Weight |
210 KG |
|
|
Charging Current (Standard version) |
200-250 A |
|
|
Discharging Current (Standard ) |
250 A |
|
|
Charging Current (Plus version) |
200 A |
|
|
Discharging Current (Plus version) |
250 A |
|
|
Cycle Life |
6000 Cycles / 80% DOD / 25°C |
|
|
Design Life |
8-10 Years |
|
|
Communication Port |
CAN/485 / WIFI Optional |
|
We provide high-performance lithium battery solutions designed for reliability, efficiency, and long-lasting power. Our batteries support a wide range of industries including energy storage, electric mobility, and industrial applications, delivering safe, sustainable, and innovative energy solutions for a smarter future.
